Solution C1
Attendance Machine + Door Access control which integrated with the RFID Reader for authentication using ID Card. It also has USB Port for downloading data using FlashDisk, Wiegend Port for additional RFID Reader, and integrated with Alarm System and SMS Message. It best used for FACTORY and COMPANY which has many employee also in need in High Speed and accurate attendance and door access control.


SPESIFICATION
C1 Hardware
With detailed data :

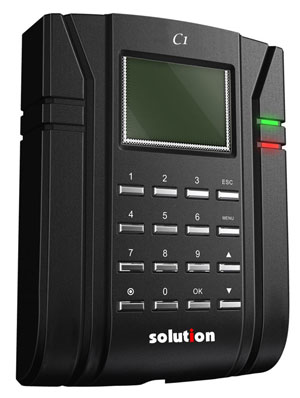

1. Hardware Photo:


2. Brand : Solution
3. Type : C1
4. Features :
  • Access Control (AC) : 1 Relay Output 2A 12V
  • AC Facilities : 50 Time Zones, 5 Grouping, 10 Combination.
  • Standalone, No need computer when operate
  • User Capacity : 30.000 RFID Card
  • Log transaction capacity : 50.000 Transaction
  • PC Communication Type : TCP/IP (RJ45), RS232/RS485, USB Flash Disk
  • Response Time : <= 1 seconds
  • Matching Type : 1:1 and 1:N
  • Standard Features: USB Flash Disk, Alarm Function, Door Controller, SMS Message, etc
  • Weigend Port: for additional RFID connection.
  • LCD and Speaker built-in for authentication signal
  • SOFTWARE INCLUDE, Attendance logs can be downloaded to PC, so you can print any kind of attenandce reports, and also can be used for calculating your employees' salary calculation based on your company's need.

C1 Software + Payroll
With features :
1. Employees management
2. Shifts/schedules management (Support multi-shift for factory)
3. Calculation for Late, Leave Early, Overtime, and workhour total.
4. Facility for input: Sick, asking for leave, etc. Also attendance correction.
5. Calculation Report period can be calculated freely from daily to monthly, detailed report, and summary report.
6. Calculation For Salary and formula, also can print employees salary receipt directly.
7. Facility for Customize Report Structure, Data Export, etc.
8. Log monitoring can be done by Real Time.
9. We also provide Free SDK (Software Development Kit), manual and source code samples for further application development.


Installation Diagram:



What's the Benefit?
The benefit of this device:
  • USB Flash Disk, it is most convenient to be used in remote installation place, especially where it doesn't have computer
  • Alarm Function, able to detecting unclosed door, door opened by force, login fail for several times, etc.
  • SMS Message, making it more interactive, administrator can send personal message to read at attenandce checking. When he/she make authentication at attenandce machine it will display special message on machine's LCD. For example : please come to HRD after lunch, or another important messages.
  • Timezone Support, Akses Kontrol Pintu dengan Timezone (Pintu Dapat diakses oleh karyawan tertentu saja dan pada waktu tertentu saja juga)
  • RJ45/UTP port placement is in back of it, therefore there will be none of cable that can be sighted after it installed.
